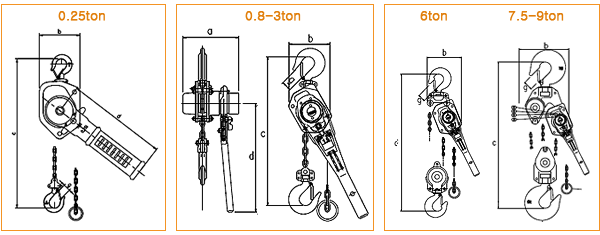

MODEL NO MG-025 MG-08 MG-10 MG-15 MG-20 MG-30 MG-60 MG-75 MG-90 CAPACITY 0.25 ton 0.8 ton 1 ton 1.5 ton 2 ton 3 ton 6 ton 7.5 ton 9 ton STANDARD LIFT 1.2m 1.5m 1.5m 1.5m 1.5m 1.5m 1.5m 1.5m 1.5m LOAD CHAIN 4.0x12 6.3x19.1 6.3x19.1 7.1x21 7.1x21 9.0x27 9.0x27 9.0x27 9.0x27 NET WEIGHT 2kg 8kg 8.5kg 11kg 12kg 17kg 26kg 42kg 48kg MIN DISTANCE BETWEEN HOOKS “C” 245mm 280mm 280mm 330mm 330mm 450mm 550mm 660mm 690mm PULLING EFFORTS 25kg 27kg 27kg 29kg 29kg 37kg 37kg 37kg 37kg a 99mm 157mm 157mm 175mm 175mm 198mm 198mm 198mm 198mm b 60mm 152mm 152mm 145mm 145mm 190mm 235mm 320mm 320mm g 20mm 27mm 27mm 32mm 32mm 38mm 46mm 46mm 70mm d 150 mm 280mm 280mm 390mm 390mm 390mm 390mm 390mm 390mm
